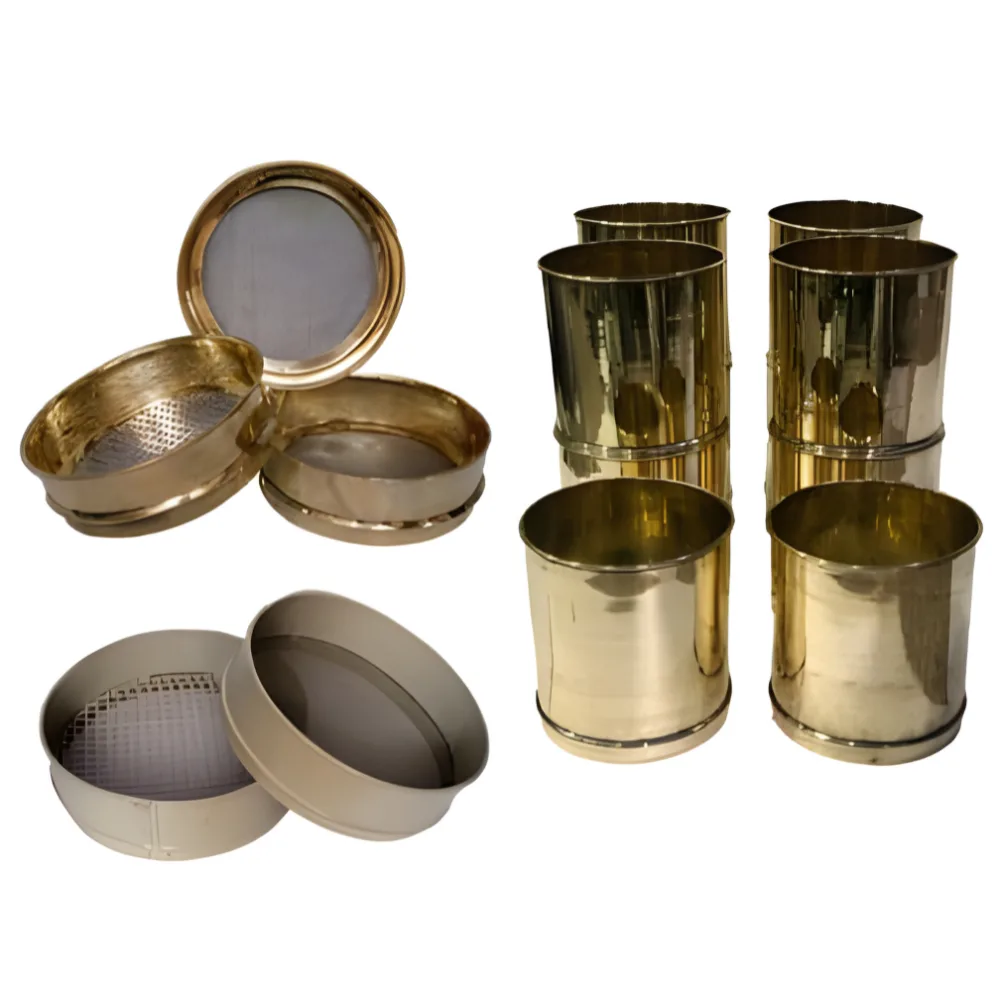

The 8-inch (20 cm) Brass Test Sieve is designed for particle-size analysis, sieve analysis and laboratory material classification.
The product uses a polished brass frame and is available with fine wire mesh or coarse perforated-plate openings depending on the required aperture size.
Available coarse aperture sizes include 125, 106, 100, 90, 80, 75, 70, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 20, 19, 16, 14, 13.2, 12.5, 11.2, 10, 9.5, 8, 6.7, 6.3, 5.6 and 4.75 mm.
Fine-mesh options are also available for smaller particle-size analysis requirements.
Used for aggregate testing, soil testing, cement and concrete analysis, powder classification, laboratory sieve analysis and construction-material quality control.
Related Testing Equipment: Sieve Shaker • Riffle Sample Divider • Ballast Sieve
The current product information references IS 460, ASTM, BSS and ISO laboratory testing requirements. Exact sieve specification should be selected according to the required test method and aperture size.
It is used for particle-size analysis and separation of laboratory samples according to aperture size.
The listed brass sieve has a nominal diameter of approximately 8 inches or 20 cm.
Yes. The current product range includes fine wire-mesh sieves and coarse perforated-plate sieves.
Yes. The 8-inch configuration is intended for use with compatible manual or motorized sieve-shaker systems.
For aperture selection and quotation, contact Labtek Enterprises.
For reliable sieve specification, use the actual aperture opening together with the applicable test method or standard. Generic BSS, ASTM and ISS number crosswalks are not treated as universally interchangeable.
| Aperture (mm) | Aperture (µm) |
|---|---|
| 4.75 | 4750 |
| 2.36 | 2360 |
| 1.18 | 1180 |
| 0.600 | 600 |
| 0.425 | 425 |
| 0.300 | 300 |
| 0.150 | 150 |
| 0.075 | 75 |
See the full Mesh Size & Micron Guide, IS 460 Guide and ASTM E11 vs ISO 3310 before specifying a sieve for a formal laboratory method.
For an accurate quotation and the correct laboratory configuration, send the actual aperture and the test method or standard wherever possible. A mesh number alone can be ambiguous between designation systems.
| Specify | What to provide |
|---|---|
| Nominal aperture | Opening in mm or µm stated by the applicable test method |
| Standard / method | For example IS 460, ASTM E11, ISO 3310, or the material-specific procedure that governs the test |
| Frame diameter | Diameter required for your working stack or sieve shaker |
| Construction | Frame material and wire-cloth or perforated-plate requirement |
| Documentation | Any inspection, verification or certificate requirement stated by your quality system |
| Quantity / stack | Number of sieves and whether lid, receiver pan or shaker compatibility must be considered |
Technical references: Mesh Size & Micron Guide, IS 460 Guide, Calibration & Inspection. For a quotation, contact Labtek Enterprises with your required aperture and delivery location.
