Gyratory Sieve Shaker

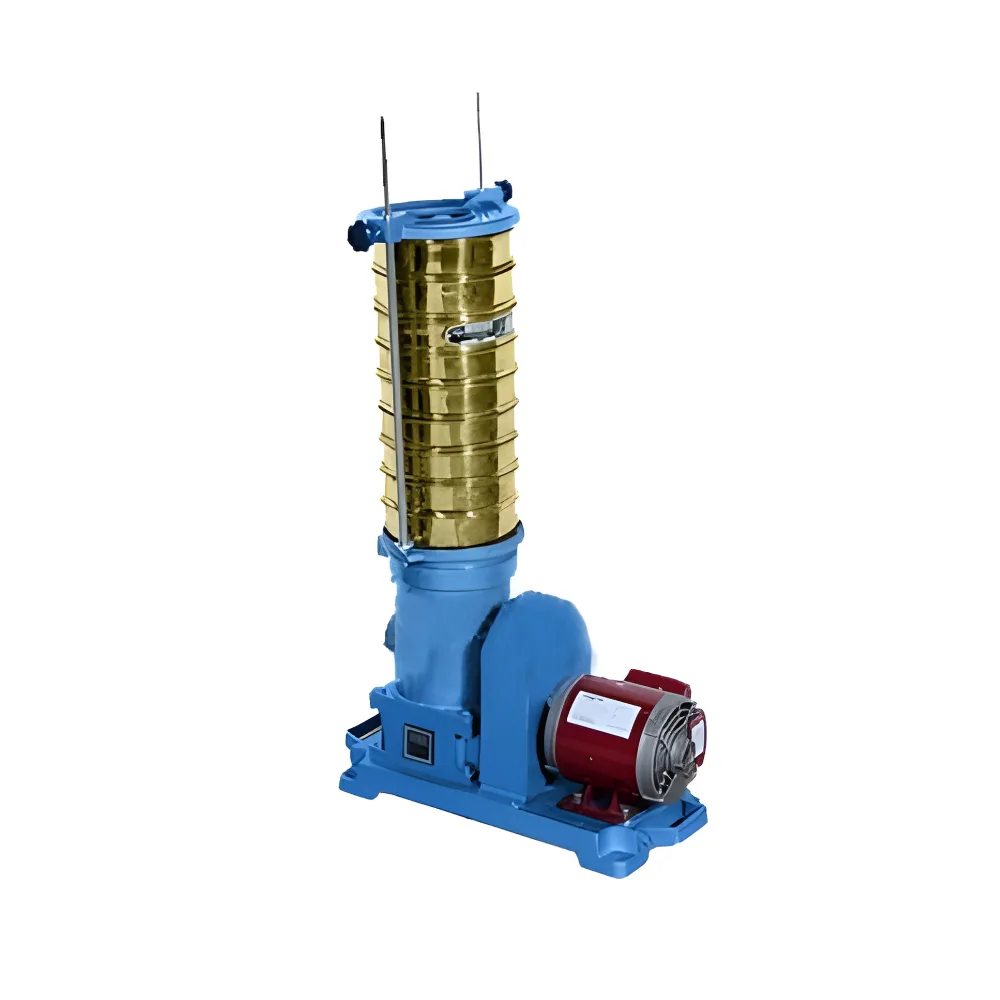

Gyratory Sieve Shaker for 8 Inch Laboratory Test Sieves
The Gyratory Sieve Shaker is designed for efficient particle-size analysis using laboratory test sieves.
The current product configuration accommodates up to 8 sieves of 8-inch diameter and uses a ¼ HP motor with reduction-gear drive for consistent mechanical sieving.
Working Principle
The sieve table does not rotate continuously. Instead, it operates with a progressively changing clockwise inclination that produces a gyratory motion across the sieve stack.
This movement is combined with vertical vibration at approximately 270 vibrations per minute, helping distribute the sample across the available sieve surface.
The gear mechanism operates in an oil bath to support smoother operation and reduce mechanical wear.
Benefits
- Supports repeatable particle-size analysis
- Uses combined gyratory and vertical motion
- Helps improve sample distribution over the sieve surface
- Oil-bath gear system for smoother mechanical operation
- Suitable for laboratory and quality-control use
- Designed for routine sieve-analysis applications
Related Testing Equipment: 8 Inch Brass Test Sieves • Riffle Sample Divider • Ballast Sieve
Frequently Asked Questions
What is a Gyratory Sieve Shaker used for?
It is used to mechanically agitate a stack of test sieves for particle-size analysis and material classification.
How many sieves can this model hold?
The current product specification states that it can accommodate up to 8 sieves of 8-inch diameter.
What motor is used in the Gyratory Sieve Shaker?
The listed model uses a ¼ HP motor with a reduction-gear mechanism.
What is the vibration frequency?
The current specification lists approximately 270 vertical vibrations per minute.
What electrical supply is required?
The listed configuration operates on approximately 220 V, 50 Hz AC supply.
Are test sieves included with the machine?
The current product information states that the machine is supplied without test sieves, lid and receiver unless ordered separately.
For specifications, sieve compatibility and quotation, contact Labtek Enterprises.
Test Sieves
Test Sieves
Test Sieves
Sieve Shaker Machine – Configuration & Quotation
For a suitable gyratory sieve shaker quotation, share the laboratory test method, sieve frame diameter, number of sieves in the working stack, sample material and any power-supply requirement. This helps confirm that the machine and sieve stack are appropriate for the intended procedure.
- Test method or applicable standard
- Sieve frame diameter and number of sieves
- Sample material and typical sample quantity
- Required operating environment and power supply
- Delivery location and quantity required
See the Sieve Shaker Selection Guide for selection factors, or contact Labtek Enterprises for a quotation.
