The Sand Pouring Cylinder is used for determining the in-situ density of soil by the sand replacement method. It is widely used in geotechnical laboratories, highway projects, earthworks and construction quality control.
The apparatus uses a calibrated cylinder, funnel and controlled shutter arrangement to determine the volume of an excavated test cavity for soil-density calculations.

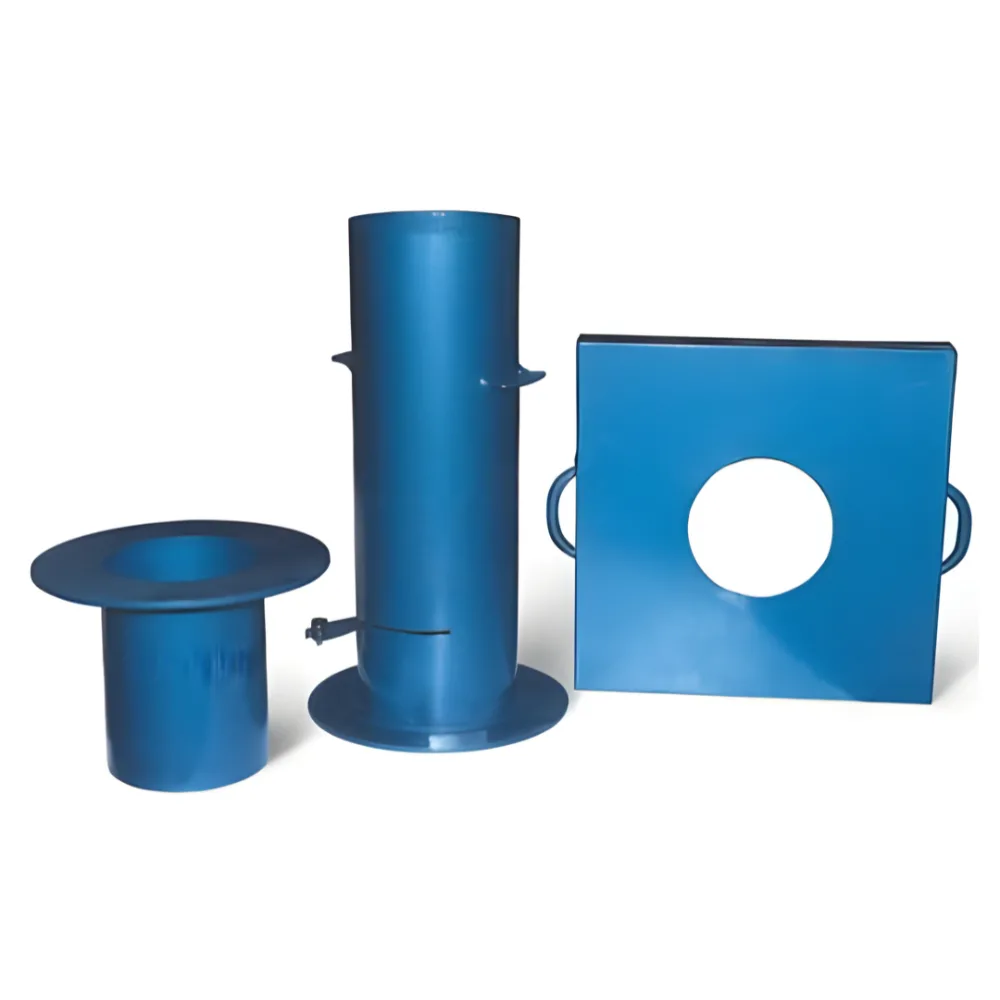

The apparatus is used directly at the test location to evaluate soil density and compaction. It includes a calibrated cylinder, conical funnel, shutter mechanism, metal tray and calibrating container.
Related Testing Equipment: Cone Penetrometer • Liquid Limit Device • Rapid Moisture Meter
Used in road construction, embankments, foundations, earthworks, geotechnical investigations and soil-testing laboratories.
This model is ideal for fine-grained and medium-grained soils.
Cylinder: 115 mm internal diameter
Funnel: Conical funnel with shutter mechanism
Calibrating Container: 100 mm deep with 50 mm wide flange
Metal Tray: 300 mm × 300 mm × 40 mm deep
Tray Hole: 100 mm diameter (centered)
Designed for in-situ density measurement of fine, medium, and coarse-grained soils in larger field conditions.
Cylinder: 155 mm diameter
Cylinder Length: 450 mm
Container: Metal tray with center hole
Usage: Suitable for larger test pits and coarse materials
A heavy-duty model ideal for coarse soils and large-scale soil density testing.
Cylinder: 215 mm internal diameter
Funnel: Conical funnel with shutter
Calibrating Container: 200 mm internal dia × 250 mm height
Flange: 75 mm wide
Metal Tray: 450 mm × 450 mm × 50 mm deep
Tray Hole: 200 mm diameter (centered)
It is used to determine the in-situ density of soil using the sand replacement method.
The listed models are available in 100 mm, 150 mm and 200 mm sizes.
The appropriate model depends on the soil type and size of the test excavation. Smaller models are commonly used for finer soils, while larger models are useful for coarser material and larger test pits.
Yes. The apparatus is designed specifically for on-site soil-density testing.
For model selection and quotation, contact Labtek Enterprises.
