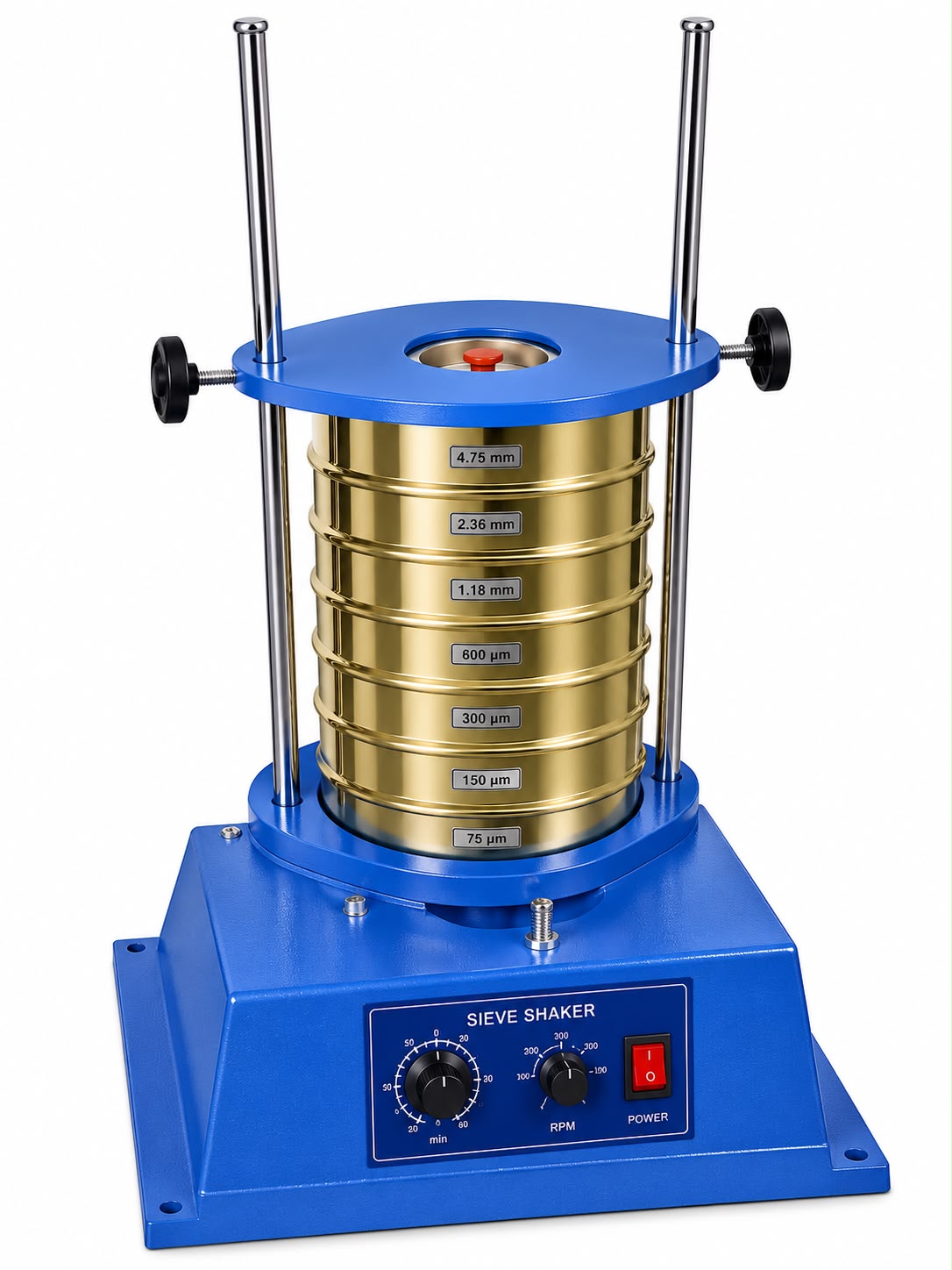

Labtek Enterprises offers a compact Table Top Sieve Shaker designed for routine laboratory sieve analysis, particle-size determination, separation and material classification. The motorized system provides controlled horizontal and vertical sieving movement to help distribute a sample efficiently across the sieve surface during dry sieving.
This laboratory sieve shaker is designed for 200 mm diameter test sieves and can accommodate a stack of up to seven sieves together with a lid and receiver. Its compact table-top configuration makes it suitable for quality-control laboratories, research facilities and material-testing laboratories working with aggregates, soil, cement, minerals, powders and other granular materials.
Technical Specifications
The equipment is intended for laboratories requiring a practical, repeatable and space-efficient method of mechanical sieve agitation for routine particle-size analysis.
The Table Top Sieve Shaker operates by transferring controlled mechanical motion from its motorized drive to the mounted sieve stack. The combined horizontal and vertical movement continuously redistributes the test sample over the mesh surfaces.
Particles smaller than the aperture of a particular sieve pass through to the next sieve while larger particles are retained. This progressive separation allows the sample to be classified into different particle-size fractions.
The operator can regulate the vibration intensity through the speed controller and set a testing cycle between 1 and 60 minutes. This controlled operation helps improve consistency during routine dry sieve analysis.
What is a Table Top Sieve Shaker used for?
A Table Top Sieve Shaker is used to mechanically agitate a stack of laboratory test sieves for particle-size determination, separation and material classification.
What sieve diameter can this model accommodate?
This configuration is designed for 200 mm diameter laboratory test sieves.
How many test sieves can be installed?
The reference configuration accommodates up to seven test sieves together with a lid and receiver.
What particle-size range can be analysed?
The stated measuring range is approximately 25 µm to 4 mm, subject to the test method, sieve configuration and characteristics of the sample.
Does the sieve shaker have a timer?
Yes. The testing duration can be programmed from 1 minute to 60 minutes.
What type of sieving movement does it provide?
The equipment combines horizontal and vertical sieving action to distribute the sample across the test sieve surfaces.
Can it be used for dry sieving?
Yes. The Table Top Sieve Shaker is designed for routine dry sieve analysis.
Which laboratories can use this equipment?
It can be used in material-testing, quality-control, research, construction-material, soil, aggregate, cement, mineral and other laboratories that perform particle-size analysis.
